VIBRATING SIEVES FOR RAW MATERIAL

SINGLE AND DOUBLE DECKS SIEVES FOR POWDER

Senza titolo8.png

Fixed base, circular vibrating screen for powders with double screening mesh.

Applications:

  • Especially designed for all phases that need a control sieving or the selection of solid products.

  • In the ceramic industry for the powder, granulates, and grounded clays selection.

  • In the RP version in the control before the presses.

Advantages:

  • Its high product drainage speed from under the meshes thanks fa its inclined plane.

  • The full, high thickness, AlSI Type 304L Stainless Steel construction guarantees protection against abrasion, high temperatures, steel and salts corrosion, and, at the same time, helps avoid product conlamination

  • Its high centrifugal force allows for the fast exit of the waste from above the meshes improving their efficiency and life.

  • Low noise

Options:

  • Mesh cleaning system

  • Lid with inspection and diffuser

  • Available in AlSI 316 version (and other material upon request)

  • Base coated with Taflon or Polyurethane

  • Atex centrifuge

  • Double screening meshes

  • Pneumatic lifting system

  • Series M vibrating motor

  • Inspecting openings on the fascia

Non-standard openings

VIBRATING SIEVES FOR DIRTY WATERS

Circular vibrating screen for ceramic splits, recycled waters, and liquid sludge.
Its main feature is that the truncated conic bottom, the retaining fascia, and base are constructed avoiding welding joints as much as possible (monolithic construction).
This construction technique allows for a high reliability without raising the cost excessively,

Appllcations:

  • Splits screening after grinding

  • Screening of manufacturing waste sludge

  • Wastewaters screening

Build specifications:

  • Monolithic construction

  • Structure: AlSI Type 304L Stainless Steel

  • High upper fascia that prevents splashes

  • Electric vibrating motorseries P, ip 65, ie3

  • Fixed base in stainless steel

  • Gear/stop switch

Advantages:

  • The double wire mesh allows far a dual-phase drying (splitting the waste quantity in two meshes). The doublewire mesh maybe used as safety in the eventuality that the upper mesh breaks

  • High mechanical strength due to its monolithic construction

  • The full, high thickness, AlSI Type 304L Stainless Steel construction guarantees protection against abrasion, high temperatures, steel and salts corrosion, and, at the same time, helps avoid product contamination

  • High waste yield and emptying speed on mesh due to high centrifugai strength of the vibrating motor

  • The high fascia prevenls the product from splashing and allows the operator to check the mesh continuously

  • Low noise

  • Low cost

Options:

  • Threewire meshversion

  • Multiple models and brands (series M) ofthe vibrating motors

  • Fixed base in stainless steel

  • Non-standard construction materials

  • Lid

  • Mesh washing system

  • Liquid diffuser

  • Fascia with non-sfandard openings

TANSK

  • GLAZE TANKS

  • MIXINGS TANKS

MIXERS

Senza titolo9.jpg

  • SLOW AND FAST RUNNING VERTICAL MIXERS

IRON REMOVING FILTERS

PUMPS

HORIZONTAL PUMPS

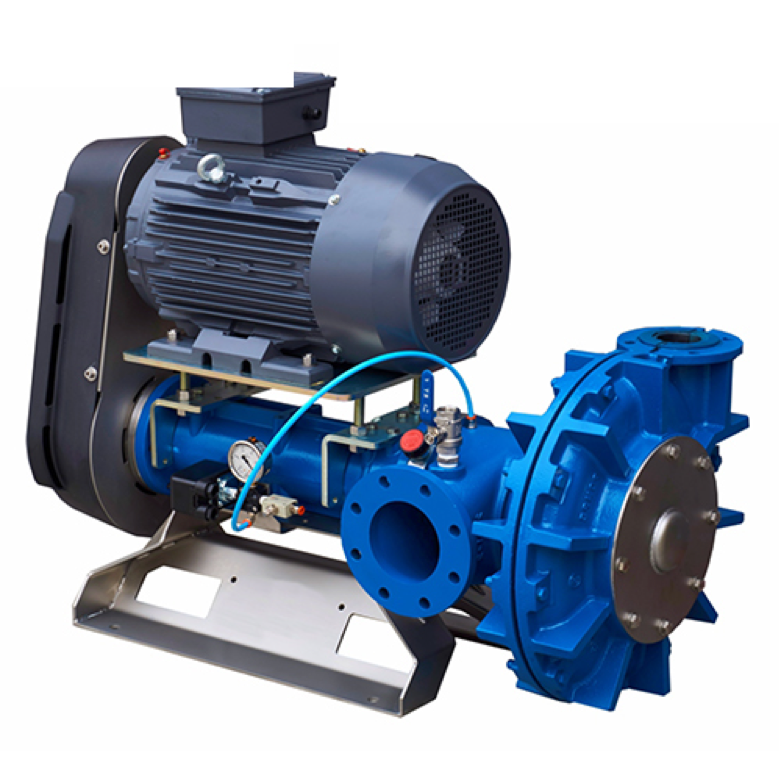

Senza titolo10.png

The horizontal centrifugai pumps with inversed intake, model EPO-ID are planned for very abrasive liquids transfer such as: Ceramic slip, glaze, waste water with solids in suspension, sewage, sands, slurry, scales coming from marble cut, black flow water coming from steel working plants, acids, and so on...

The seals are in tightness refrigerated by oil or water made of tungsten carbide and have a long lasting.
As there is a lateral intake, the seals are kept in suction pressure all the time and for this reason they last longer.

This type of pump can be also used on product levar if properly installed.

The indirect transmission gives the possibility to choose the pump speed in order to set the working curve.
In this configuration standard electric motors are used.

The sturdy fixing basament is made of press-bent sheet metal plate stainless steel. The internal drive shaft is coated with thick chromium.
The bodies and impellers are coated with special alloy of fire proof rubber or made of hard material (hardalloy).

The impellers of the open type allow the passage of solids even of big sizes in suspension (ask our technicians about technical explanation).

Technical features:

  • Body: cast iron - Supports: cast iron

  • Internai coating: interchangeable with different types of fire proof rubber.

  • Impellers: special alloy or coated with different types of fire proof rubber.

  • Seals: NBR - Viton - PTFE - silicon - EPDM - and so on

  • Mechanical seals: Widia - Silicon - Ceramic - Diamond - and so on

  • Working temperature: nitrile coating from -10° to +90°

  • Working temperature: coating with naturaI rubber from -10° to +60°

For specific technical features ask our sales office.

VERTICAL PUMPS

Senza titolo11.jpg

Suggested for the transport of high density or abrasive and corrosive liquids through centrifugal pumping.

Applications:

Particularly suggested in the chemical industries and in the colouring industries at goods transferring.

In the Ceramics in the glazing lines for bells supplying, vela, double discs, engobes in the water collecting channels, in the grinding department inside the tanks.

Advantages:

  • The manufacture completely in stainless steel in high thickness grants resistance to abrasion to high temperatures and to salt and acids corrosion.

  • It avoids the product pollution.

  • The absence of the mechanical seal makes possible to use the pump even with dry solutions.

  • The propeller at the bottom allows to disrupt the thickened products before pumping.

  • It is possible to mount different accessories (i.e. filters/ iron removers/inverter/low tension or pneumatic motors/ elastic joints/coatings with different materials like rubber, rilsan, Teflon and hard coatings and so on/ impellers in nylon, in stainless steel, elastometers/valves in different materials).
